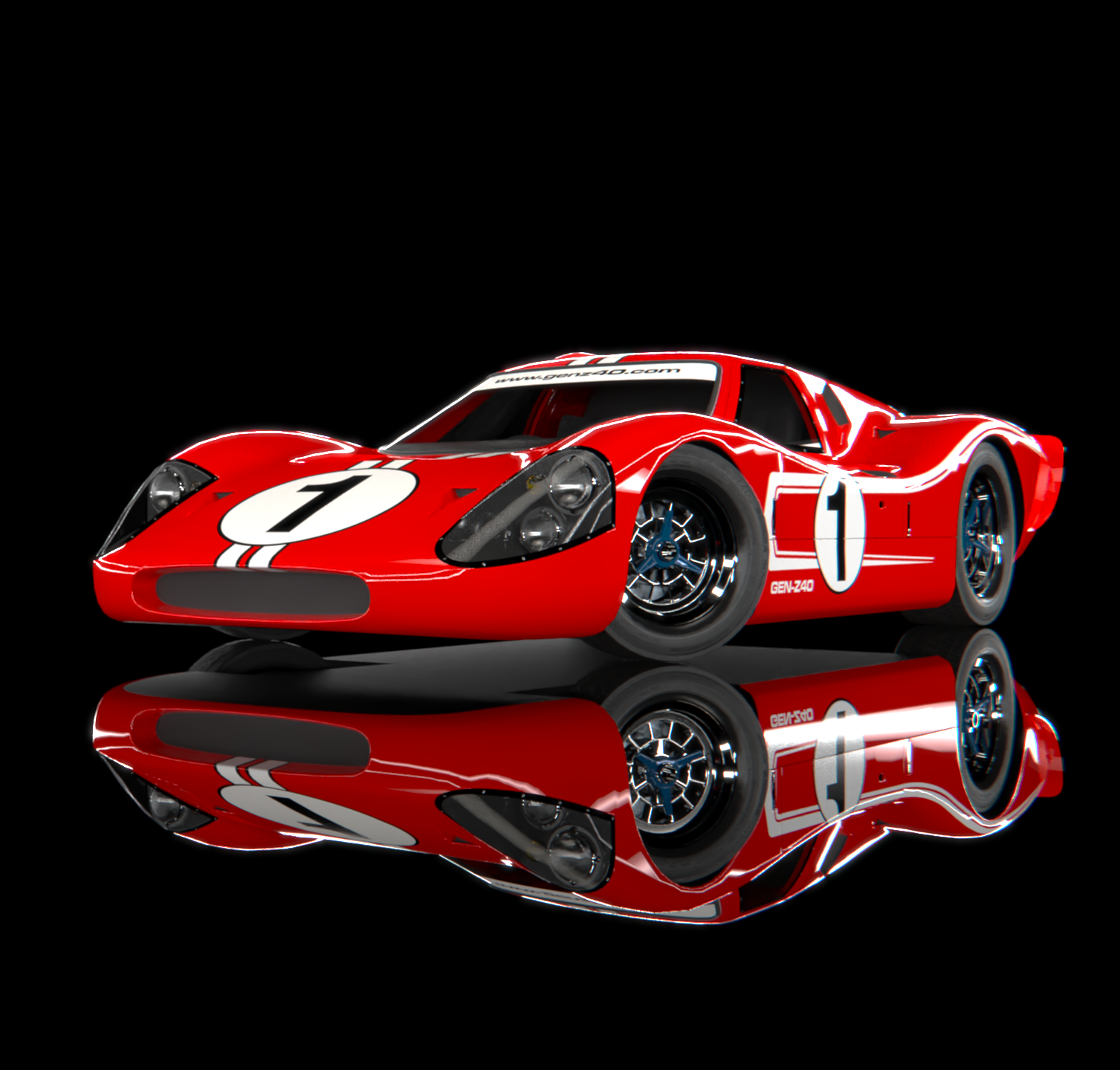

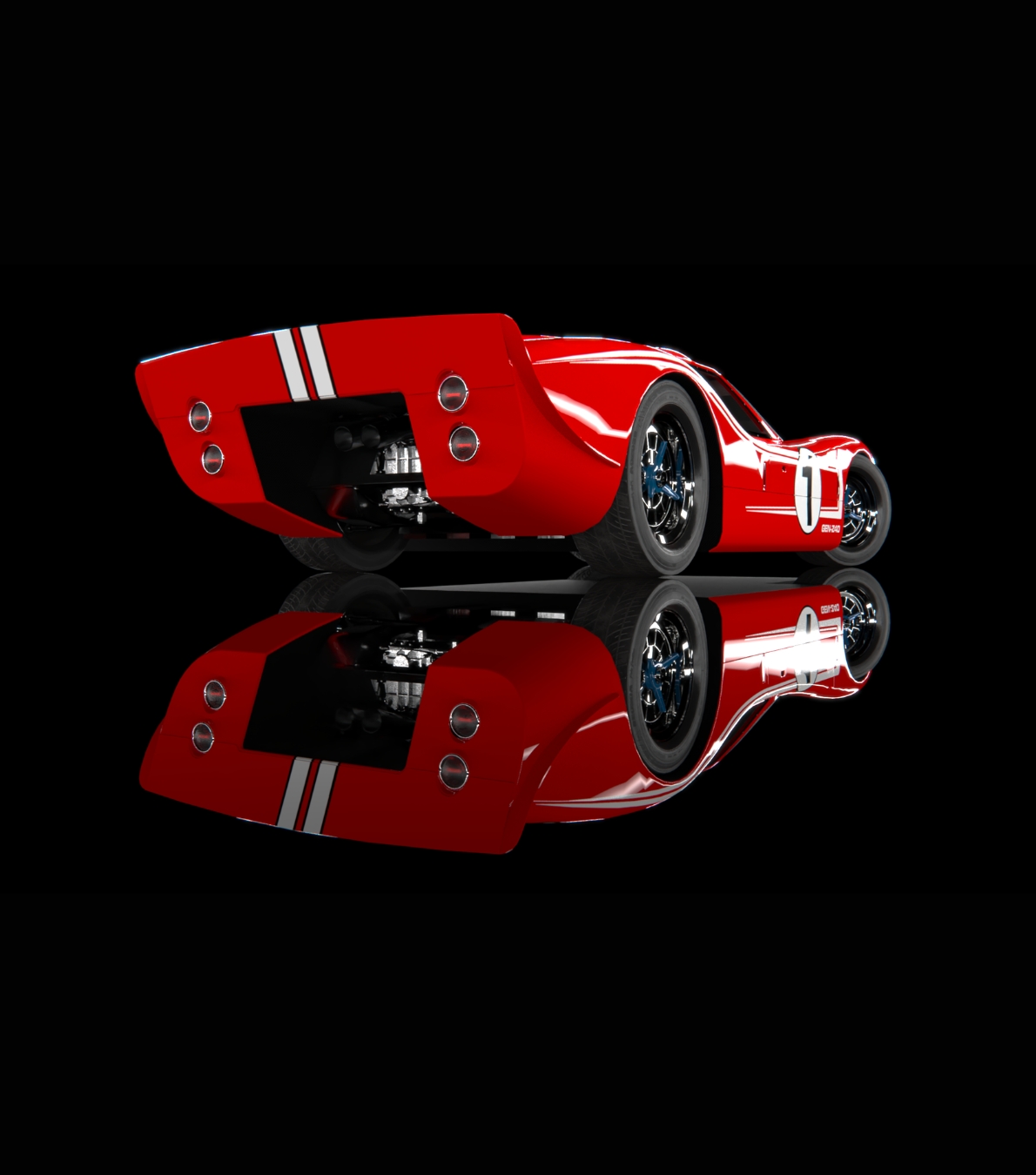

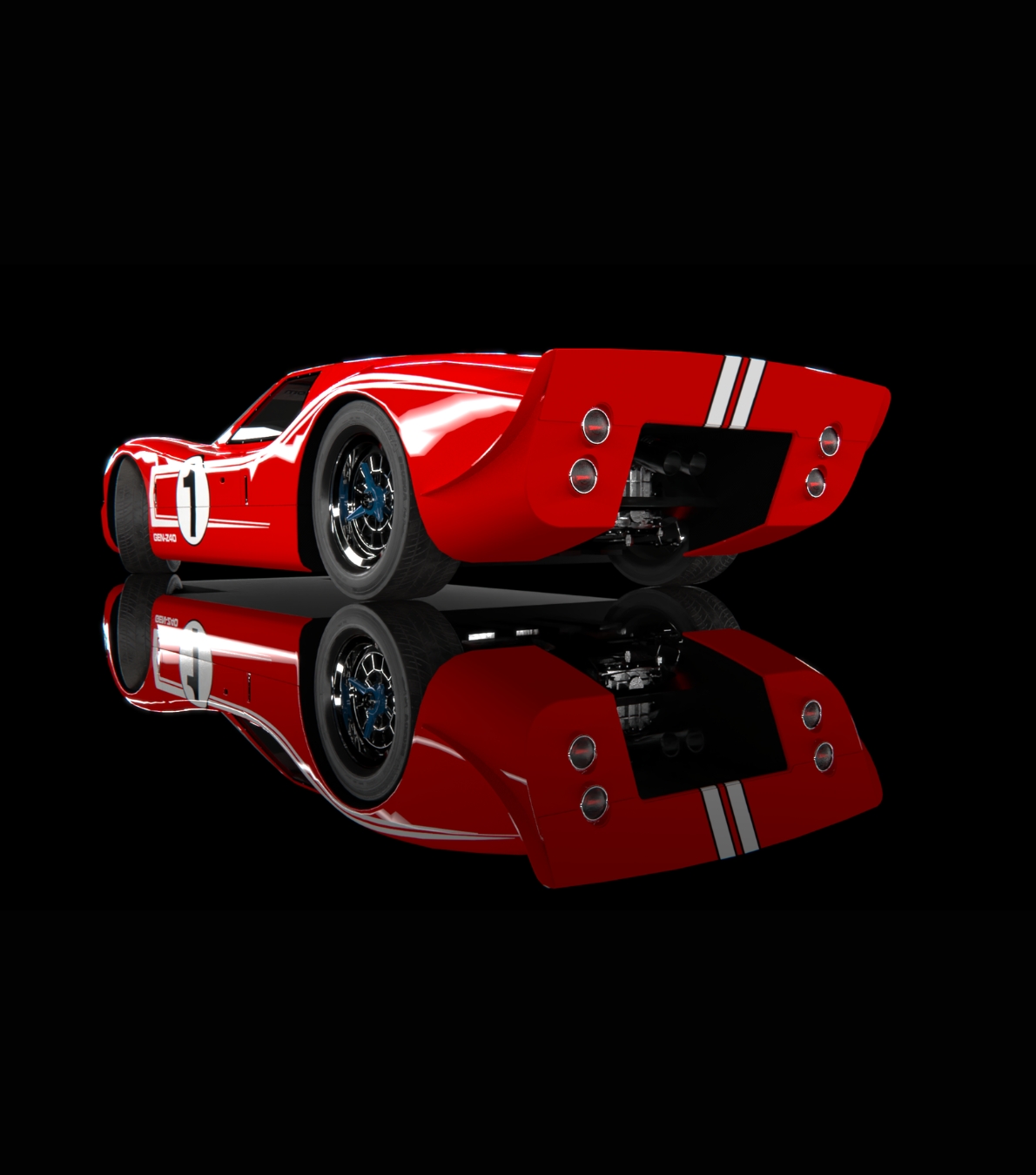

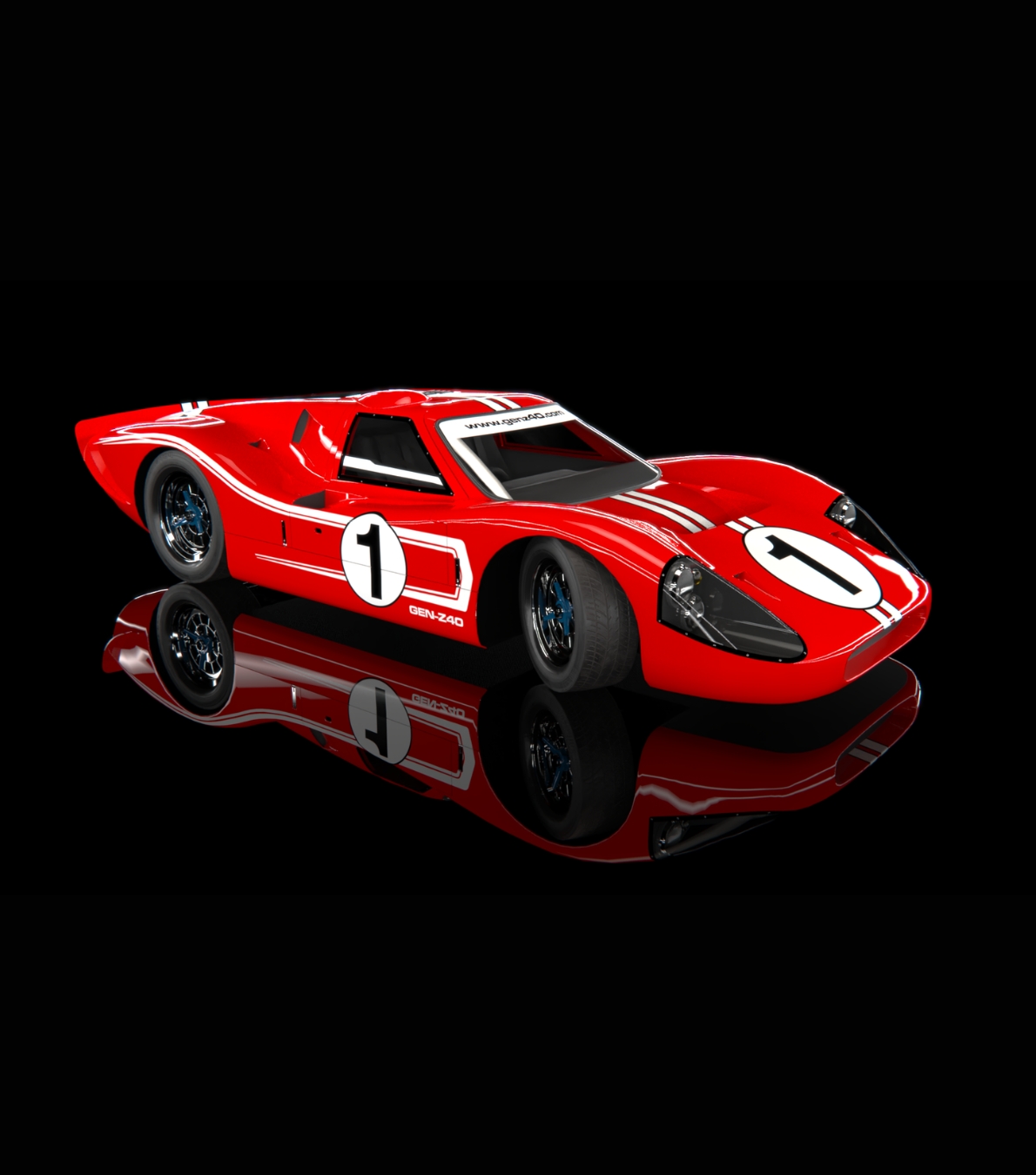

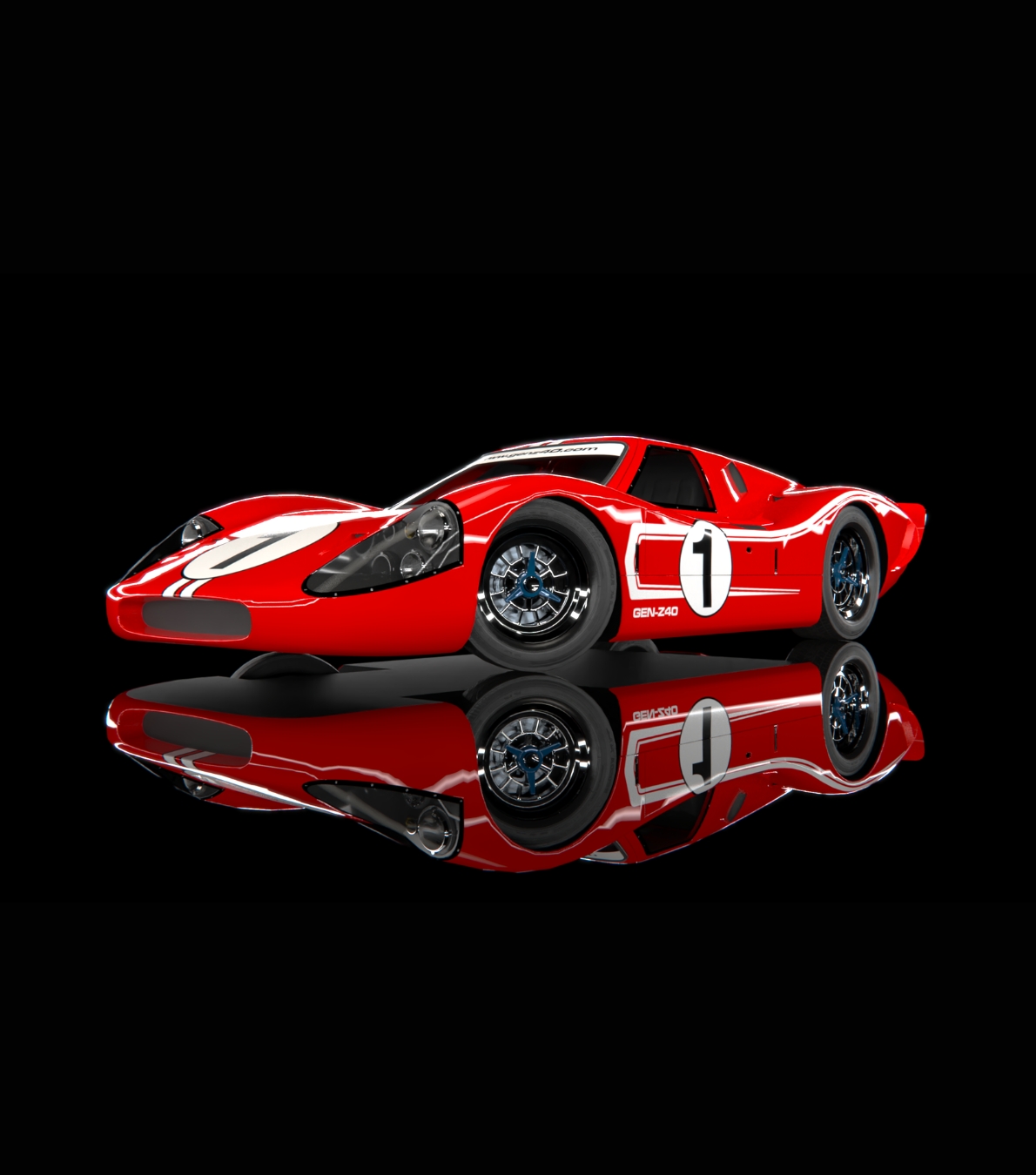

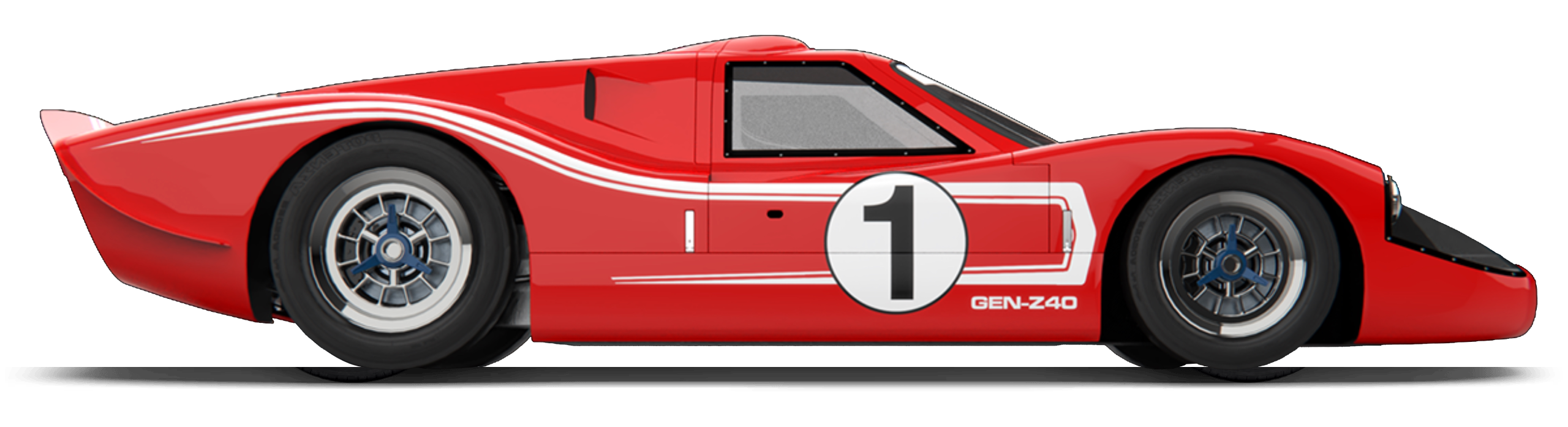

GEN-Z40 MARK IV
Built by Alvi Automobiles

The GEN-Z40 Mark IV is a tribute to the car that didn't just win Le Mans in 1967—it dominated it. Born, built, and raced on American soil, the original Mark IV was Ford's most radical evolution of the GT40 platform, and the GEN-Z40 Mark IV brings that same fearless innovation to the modern road. With its longtail bodywork, dramatic Kammback rear, the Mark IV is unlike anything else on the street. It's not just wider—it's wilder.

Key Features:

All-American Design & Engineering built by Alvi Automobiles.

Modified Tubular Chassis for MK IV Body, purpose-built and reinforced.

Aerodynamic Longtail Bodywork with Kammback tail and extended nose.

Big-Block V8 Performance for high-displacement power.

— Functional Race-Inspired Ducting with tunnel airflow and relief vents.
— Authentic Driver Environment with analog instrumentation and period-correct layout.
— Left or Right-Hand Drive Options available.
— Limited Production with handcrafted builds and rare legacy preservation.

Order Now

Chassis

The GEN-Z40 chassis by Alvi Automobiles is a modern reinterpretation of the GT40’s legendary structure — engineered from scratch for performance, comfort, and real-world usability.

Key Features:

✓ Original-style suspension geometry with major improvements for enhanced stability and drivability
✓ Fully custom tubular steel chassis – not a copy, but a tribute built with modern engineering
✓ High-grade materials for exceptional torsional rigidity and balanced weight distribution
✓ Designed for both street and track, blending performance with comfort
✓ Left- or right-hand drive compatibility with increased cabin space
✓ Integrated mounts for suspension, drivetrain, and optional A/C
✓ Improved serviceability with smart bracket and access point placement
✓ Built to honor racing heritage, engineered for modern roads

Front Suspension

The front suspension draws directly from proven motorsport design, combining OEM reliability with precision-machined upgrades to provide sharp steering response and fine-tuned control.

Key Features:

Design: Double wishbone configuration
Upper Control Arm: OEM Ford production arm
Spindle: Ford production spindle
Lower Control Arm: CNC-machined custom component
Dampers: Adjustable coilover shocks
Adjustability: Ride height, camber, caster, toe

Rear Suspension

The rear setup is purpose-built for the GEN-Z40 platform, offering excellent lateral stability and traction. With a focus on tuning flexibility and real-world performance, the system ensures the car remains predictable and balanced under acceleration, cornering, and braking.

Key Features:

Design: Custom trailing arm / multi-link hybrid layout
Uprights: In-house fabricated uprights for strength and geometry alignment
Control Arms: Custom-designed linkages for optimized wheel control
Dampers: Adjustable coilover shocks
Adjustability: Ride height, camber, toe

Alvi Automobiles sells turnkey Minus car (completed without drivetrain), but can assist you in sourcing drivetrain and getting all the way to a finished vehicle!

RESERVE NOW WITH 100$

STANDARD EQUIPMENT

Feature	Description
Body	Vacuum Infused / Hand laid Fiber Glass Body
Front Suspension	Ford Production upper control Arm and Spindle, Custom produced lower control arm, QA1 standard adjustable coilover shocks
Rear Suspension	Custom produced upright and control arm, QA1 standard adjustable coilover shocks
Brakes	6 Piston Front, 4 Piston Rear Calipers. 12" Rotors.
Wheels	Halibrand Style Wheels 15" x 8 front, 15" x 10 rear
Paint	Single Color non-metallic, no stripes or livery
Interior	Vinyl upholstery, Carpeted and fully finished interior trim (black), Speed hut Gauges customized for Alvi Automobiles
Fuel Tanks	Aluminum

➖ The car is custom built to your specifications, Comes fully painted and finished with standard equipment ready to accept your drivetrain. Multiple upgrades are available

➖ Questions? WhatsApp/text Sal @ 718-787-5849 or email info@genz40.com

Save your spot & lock in a 20% discount with $100 deposit today.
